Sizes
Available
All dimensions in mm
|
To
Suit Extract Fan Of Dia
|
315
|
400
|
500
|
630
|
800
|
1000
|
|
355
|
450
|
560
|
710
|
|

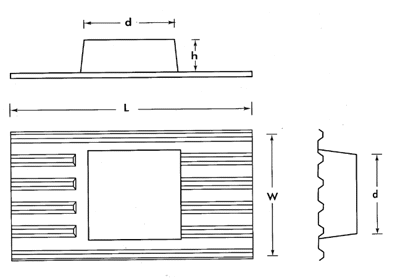

Opening
Size 'd'
|
640
|
740
|
890
|
1010
|
1140
|
1400
|
|
Length
Of Panel 'L'
|
315
|
400
|
500
|
630
|
800
|
1000
|
|
Height
Of Upstand'h'
|
150
|
150
|
200
|
200
|
250
|
250
|
Circular openings are available in standard dia sizes of 200, 400, 600, 800 &
1000 mm.
For special sizes call/email for quotation.contact
us
Product
Range
-
Non
- Insulated Profiled Panels
-
Insulated Profiled Panels
-
Panels

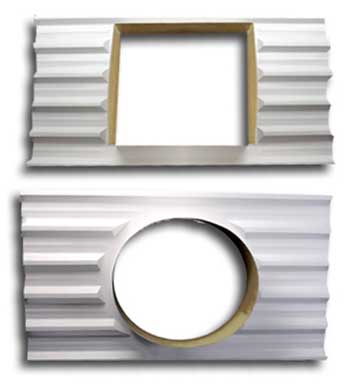

with sq./Rect./circular opening
-
Fire
Retardant Panels
-
Split
Soaker Panels(for existing projections)
In
addition to soaker panels we also manufacture
Eaves flashing, Ridge flashing and Fascias
to suit various profiles.
The
standard colours of external finish are light
grey colour to RAL 7035 and white colour to RAL 9010 and standard thickness is 2 mm. However, other colours and higher thickness are possible if required.
Click
here to view product properties
Precautions
-
Our
normal soaker panels (less then 4 mm thick)
are not suitable for being walked or crawled
over.(for foot traffic, sheets have to be
specifically manufactured)...
-
The length of panel should be such that each of panel must rest on the adjacent purlins & properly overlapped with adjacent sheets for best result.
|
